DB(s) Benchmark

For benches we are using the following tool: H2OAI Bench

Prerequisites

Ubuntu:

sudo apt install r-base

Run R and then in a R console type:

install.packages("data.table")

Exit from R and type in a terminal:

Rscript _data/groupby-datagen.R 1e7 1e2 0 0

---

Group By Results

Legend: Q1-Q7 = Query 1 through Query 7. Lower values (ms) are better.

DB	Q1	Q2	Q3	Q4	Q5	Q6	Q7
DuckDB (multithread turned on)	63	153	360	23	322	330	878
DuckDB (multithread turned off)	347	690	601	108	440	528	3269
ClickHouse	51	189	235	47	265	249	1732
? (4.0)	59	143	166	99	156	551	4497
Rayforce	60	74	118	72	122	104	1394
ThePlatform	213	723	507	285	488	465	15712

Group By Benchmark Details

Dataset: G1_1e7_1e2_0_0.csv (10 million rows)

DuckDB (multithread turned on)

.timer "on"

Load CSV: create table t as SELECT * FROM read_csv('./db-benchmark/G1_1e7_1e2_0_0.csv');

Q1 (63ms)

select id1, sum(v1) AS v1 from t group by id1;

Q2 (153ms)

select id1, id2, sum(v1) AS v1 from t group by id1, id2;

Q3 (360ms)

select id3, sum(v1) AS v1, mean(v3) AS v3 from t group by id3;

Q4 (23ms)

select id4, mean(v1) AS v1, mean(v2) AS v2, mean(v3) AS v3 from t group by id4;

Q5 (322ms)

select id6, sum(v1) AS v1, sum(v2) AS v2, sum(v3) AS v3 from t group by id6;

Q6 (330ms)

select id3, max(v1)-min(v2) AS range_v1_v2 from t group by id3;

Q7 (878ms)

select id1, id2, id3, id4, id5, id6, sum(v3) AS v3, count(*) AS count from t group by id1, id2, id3, id4, id5, id6;

DuckDB (multithread turned off)

.timer "on" SET threads = 1;

Load CSV: create table t as SELECT * FROM read_csv('./db-benchmark/G1_1e7_1e2_0_0.csv');

Q1 (347ms)

select id1, sum(v1) AS v1 from t group by id1;

Q2 (690ms)

select id1, id2, sum(v1) AS v1 from t group by id1, id2;

Q3 (601ms)

select id3, sum(v1) AS v1, mean(v3) AS v3 from t group by id3;

Q4 (108ms)

select id4, mean(v1) AS v1, mean(v2) AS v2, mean(v3) AS v3 from t group by id4;

Q5 (440ms)

select id6, sum(v1) AS v1, sum(v2) AS v2, sum(v3) AS v3 from t group by id6;

Q6 (528ms)

select id3, max(v1)-min(v2) AS range_v1_v2 from t group by id3;

Q7 (3269ms)

select id1, id2, id3, id4, id5, id6, sum(v3) AS v3, count(*) AS count from t group by id1, id2, id3, id4, id5, id6;

ClickHouse

Load CSV: CREATE TABLE t (id1 String, id2 String, id3 String, id4 Int64, id5 Int64, id6 Int64, v1 Int64, v2 Int64, v3 Float64) ENGINE = Memory;

clickhouse-client -q "INSERT INTO default.t FORMAT CSV" < ./db-benchmark/G1_1e7_1e2_0_0.csv

Q1 (51ms)

select id1, sum(v1) AS v1 from t group by id1;

Q2 (189ms)

select id1, id2, sum(v1) AS v1 from t group by id1, id2;

Q3 (235ms)

select id3, sum(v1) AS v1, avg(v3) AS v3 from t group by id3;

Q4 (47ms)

select id4, avg(v1) AS v1, avg(v2) AS v2, avg(v3) AS v3 from t group by id4;

Q5 (265ms)

select id6, sum(v1) AS v1, sum(v2) AS v2, sum(v3) AS v3 from t group by id6;

Q6 (249ms)

select id3, max(v1)-min(v2) AS range_v1_v2 from t group by id3;

Q7 (1732ms)

select id1, id2, id3, id4, id5, id6, sum(v3) AS v3, count(*) AS count from t group by id1, id2, id3, id4, id5, id6;

? (4.0)

Load CSV: t: ("SSSJJJJJF";enlist",") 0: hsym `$":./db-benchmark/G1_1e7_1e2_0_0.csv"

Q1 (59ms)

select v1: sum v1 by id1 from t

Q2 (143ms)

select v1: sum v1 by id1, id2 from t

Q3 (166ms)

select v1: sum v1, v3: avg v3 by id3 from t

Q4 (99ms)

select v1: avg v1, v2: avg v2, v3: avg v3 by id4 from t

Q5 (156ms)

select v1: sum v1, v2: sum v2, v3: sum v3 by id6 from t

Q6 (551ms)

select range_v1_v2: (max v1) - (min v2) by id3 from t

Q7 (4497ms)

select v3: sum v3, cnt: count i by id1, id2, id3, id4, id5, id6 from t

Rayforce

Load CSV: (set t (csv [Symbol Symbol Symbol I64 I64 I64 I64 I64 F64] "./db-benchmark/G1_1e7_1e2_0_0.csv"))

Q1 (60ms)

(timeit (select {v1: (sum v1) from: t by: id1}))

Q2 (74ms)

(timeit (select {v1: (sum v1) from: t by: {id1: id1 id2: id2}}))

Q3 (118ms)

(timeit (select {v1: (sum v1) v3: (avg v3) from: t by: id3}))

Q4 (72ms)

(timeit (select {v1: (avg v1) v2: (avg v2) v3: (avg v3) from: t by: id4}))

Q5 (122ms)

(timeit (select {v1: (sum v1) v2: (sum v2) v3: (sum v3) from: t by: id6}))

Q6 (104ms)

(timeit (select {range_v1_v2: (- (max v1) (min v2)) from: t by: id3}))

Q7 (1394ms)

(timeit (select {v3: (sum v3) count: (map count v3) from: t by: {id1: id1 id2: id2 id3: id3 id4: id4 id5: id5 id6: id6}}))

ThePlatform

Load CSV: t: ("SSSJJJJJF";enlist",") 0: `$":./db-benchmark/G1_1e7_1e2_0_0.csv"

Q1 (213ms)

0N#.?[t;();`id1!`id1;`v1!(sum;`v1)]

Q2 (723ms)

0N#.?[t;();`id1`id2!`id1`id2;`v1!(sum;`v1)]

Q3 (507ms)

0N#.?[t;();`id3!`id3;`v2`v3!((sum;`v2);(avg;`v3))]

Q4 (285ms)

0N#.?[t;();`id4!`id4;`v1`v2`v3!((avg;`v1);(avg;`v2);(avg;`v3))]

Q5 (488ms)

0N#.?[t;();`id6!`id6;`v1`v2`v3!((sum;`v1);(sum;`v2);(sum;`v3))]

Q6 (465ms)

0N#.?[?[t;();`id3!`id3;`v1`v2!((max;`v1);(min;`v2))];();0b;`id3`range_v1_v2!(`id3;(-;`v1;`v2))]

Q7 (15712ms)

0N#.?[t;();`id1`id2`id3`id4`id5`id6!`id1`id2`id3`id4`id5`id6;`v3`count!((sum;`v3);(count;`v3))]

---

Join Results

Legend: Q1 = Left Join, Q2 = Inner Join. OOM = Out of Memory. Lower values (ms) are better.

DB	Q1	Q2
DuckDB (multithread turned on)	OOM	OOM
DuckDB (multithread turned off)	OOM	OOM
ClickHouse	OOM	OOM
? (4.0)	3174	3098
Rayforce	3149	1610
ThePlatform	23987	34104

Join Benchmark Details

Data generation:

Rscript _data/join-datagen.R 1e7 1e2 0 0

DuckDB (multithread turned on)

.timer "on"

Load CSV:

• x: create table x as SELECT * FROM read_csv('./db-benchmark/J1_1e7_NA_0_0.csv');
• y: create table y as SELECT * FROM read_csv('./db-benchmark/J1_1e7_1e7_0_0.csv');

Q1 (OOM)

select * from x left join y on x.id1 = y.id1 and x.id2 = y.id2;

Q2 (OOM)

select * from x inner join y on x.id1 = y.id1 and x.id2 = y.id2;

DuckDB (multithread turned off)

.timer "on" SET threads = 1;

Q1 (OOM)

select * from x left join y on x.id1 = y.id1 and x.id2 = y.id2;

Q2 (OOM)

select * from x inner join y on x.id1 = y.id1 and x.id2 = y.id2;

ClickHouse

Load CSV:

• CREATE TABLE x (id1 Int64, id2 Int64, id3 Int64, id4 String, id5 String, id6 String, v1 Float64) ENGINE = Memory;
• CREATE TABLE y (id1 Int64, id2 Int64, id3 Int64, id4 String, id5 String, id6 String, v2 Float64) ENGINE = Memory;

clickhouse-client -q "INSERT INTO default.x FORMAT CSV" < ./db-benchmark/J1_1e7_NA_0_0.csv
clickhouse-client -q "INSERT INTO default.y FORMAT CSV" < ./db-benchmark/J1_1e7_1e7_0_0.csv

Q1 (OOM)

select * from x left join y on x.id1 = y.id1 and x.id2 = y.id2;

Q2 (OOM)

select * from x inner join y on x.id1 = y.id1 and x.id2 = y.id2;

? (4.0)

Load CSV:

• x: ("JJJSSSF";enlist",") 0: `$":./db-benchmark/J1_1e7_NA_0_0.csv"
• y: ("JJJSSSF";enlist",") 0: `$":./db-benchmark/J1_1e7_1e7_0_0.csv"

Q1 (3174ms)

x lj 2!y

Q2 (3098ms)

x ij 2!y

Rayforce

Load CSV:

• (set x (csv [I64 I64 I64 Symbol Symbol Symbol F64] "./db-benchmark/J1_1e7_NA_0_0.csv"))
• (set y (csv [I64 I64 I64 Symbol Symbol Symbol F64] "./db-benchmark/J1_1e7_1e7_0_0.csv"))

Q1 (3149ms)

(timeit (lj [id1 id2] x y))

Q2 (1610ms)

(timeit (ij [id1 id2] x y))

ThePlatform

Load CSV:

• x: ("JJJSSSF";enlist",") 0: `$":./db-benchmark/J1_1e7_NA_0_0.csv"
• y: ("JJJSSSF";enlist",") 0: `$":./db-benchmark/J1_1e7_1e7_0_0.csv"

Q1 (23987ms)

0N#.(?[lj[(`x;x);(`y;y);((~`x`id1;~`x`id2);(~`y`id1;~`y`id2))]; (); 0b; `a`b`c`d`e`f`g`h!(~`y`id1;~`y`id2;`y`id3;~`y`id4;~`y`id5;~`y`id6;~`x`v1;~`y`v2)])

Q2 (34104ms)

0N#.(?[ij[(`x;x);(`y;y);((~`x`id1;~`x`id2);(~`y`id1;~`y`id2))]; (); 0b; `a`b`c`d`e`f`g`h!(~`y`id1;~`y`id2;`y`id3;~`y`id4;~`y`id5;~`y`id6;~`x`v1;~`y`v2)])

---

Window Join Results

Legend: Q1 = Window Join query. Lower values are better.

DB	Q1
? (4.0)	~33 min
Rayforce	59145.60 ms

Window Join Benchmark Details

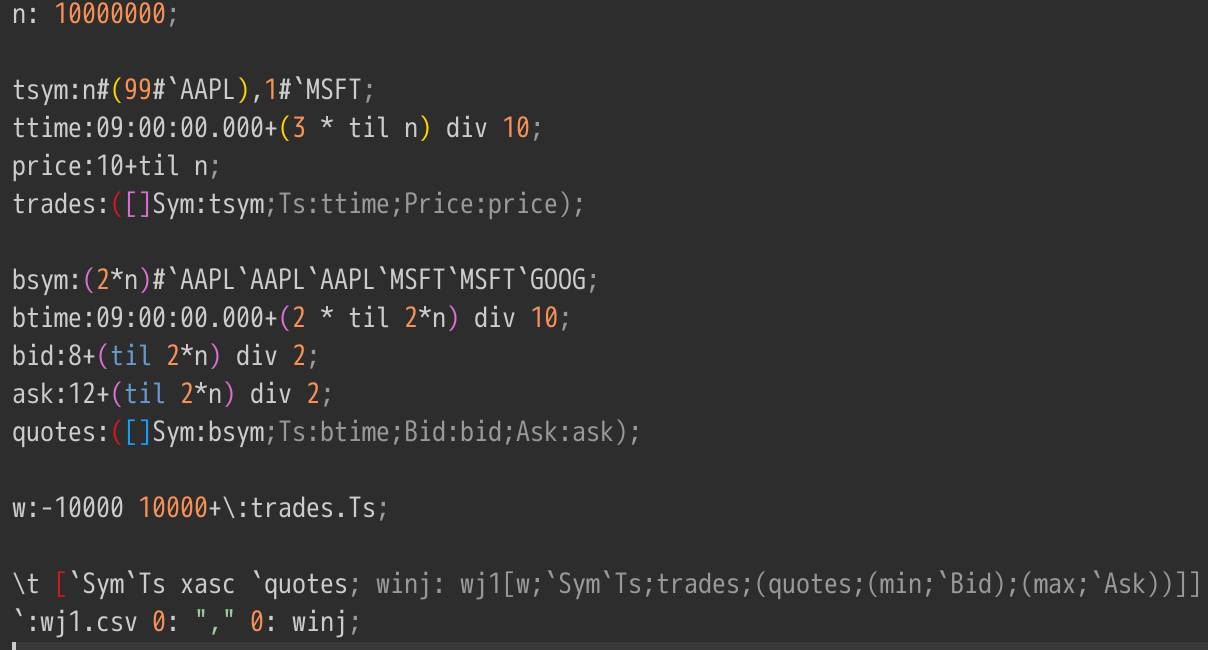

? (4.0)

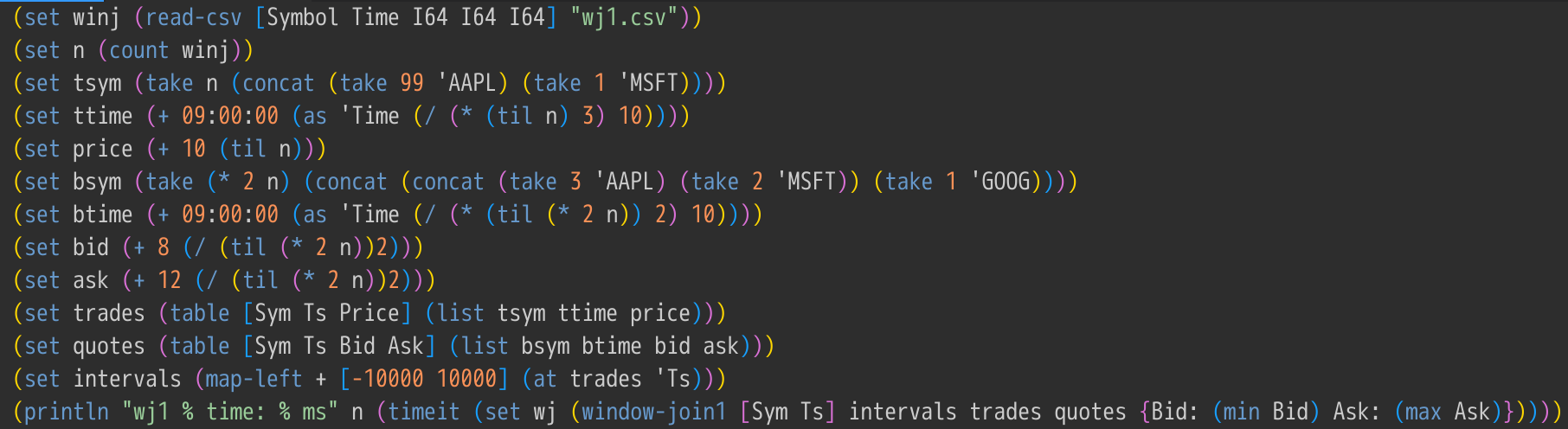

Rayforce
